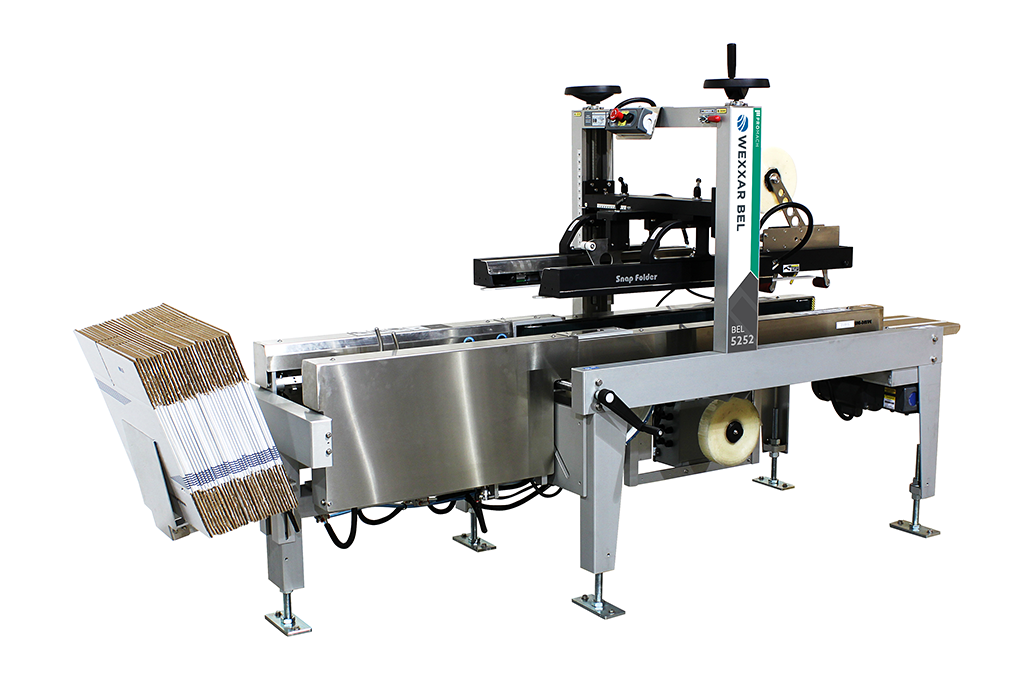

Wexxar/BEL 5252u Semi-Automatic Pack and Seal System

Wexxar/BEL 5252 Semi-Automatic Pack and Seal System

Key Features

  • Uni-Drive System for Consistent Uniform Seal
  • Superior Tape Application with DEKKA High Performance Tape Heads
  • Tool-less Case Size Changes, Simple and Quick
Overview

The BEL 5252u semi-automatic platform allows for the form, pack, and bottom seal functionality. As a user-friendly, convenient system, the 5252 is a great fit for most applications where standard case sizes are used.

To eliminate the need for machine guarding, the BEL 5252u features the "Snap Folder" technology, the design that allows the flaps to fold without the use of dangerous flap kickers. The machine comes with the standard KDF Box Stand attachment for ergonomic operation and offers the "Uni-Drive System" which keeps the conveyor side belts synchronized to provide a continuous square seal.

By using a unitized platform with a combination of case size adjustments, the equipment is compact and has a reduced footprint. Operational from both sides of the machine, the BEL 5252u allows for tool-less case size modifications, making it simple and quick with easily accessible change points.

Add-on Options:
  • Accumulation Table
  • Nestaflex Conveyor
Features
Wexxar/BEL BEL5252u Features:
  • Dynamic flap-folding system power folds all bottom flaps
  • Positive mechanical case hold-down keeps box in place for hands-free loading
  • Snap Folder ultra-safe design folds flaps without the use of dangerous flap kickers
  • Uni-Drive squaring technology that provide consistent and uniform seal on cases
  • Unitized and quick tool-less case size change
  • Reliable, consistent “no break” tape advance with DEKKA 22 Stainless Steel 2” tape heads
  • User-friendly pictorial guides and color coded labelling for convenient operation and size changes
  • Designed and built in North America with premium materials
  • Corrosion resistant and paint free anodized aluminum construction guards against machine wear and extends machine life
Wexxar/BEL BEL5252u Optional Modifications:
  • Custom voltages
  • 3” Tape head upgrade
Wexxar/BEL BEL5252u Optional Accessories:
  • Locking casters
  • Outfeed table or conveyor
  • Accumulation table
Specifications
Wexxar/BEL BEL5252u Specifications:
  • Machine Weight: 900 lbs
  • Machine Dimensions: 91.25”(L) x 33”(W) x 60”(H)
  • Air: 0.2 cubic feet per cycle at 80-90 p.s.i.
  • Electrical: 120 Volts, 1 PH, 60 Hz - 10 amp draw
  • Speeds: up to 15 cases per minute
  • Oversize model available
Wexxar/BEL BEL5252u Case Size Range:
  • Minimum: 8" (L) x 6" (W) x 5" (H)
  • Maximum: 22" (L) x 15" (W) x 16" (H)
Note: Casters add 4" to minimum and maximum height
